Single leaf swing gates

Single leaf swing gates crafted from rectangular hollow sections (RHS), miter welded for enhanced strength,
presents a robust and cost-effective solution for both residential and commercial properties. These gates are designed
with simplicity and durability in mind, utilizing the properties of RHS to provide a sturdy frame that can withstand
various environmental conditions.

GATE APPLICATION

APPLICATIONS:

  • Residential houses

  • Public playgrounds

  • Schools, public gardens and parks

  • Sport fields and stadiums

  • Other perimeter security areas

TECHNICAL SPECIFICATIONS

SINGLE LEAF SWING GATES

Technical specifications:

  • Frame: RHS 60x40 mm

  • Posts: 60x60, 80x80, 100x100,120x120 mm

  • Frame: tubular section in square bar steel 40 x 40 mm

  • Infill: 2D panel 8/6/8, 6/5/6, option 3D 5/5

  • Width: 1.00, 1.25, 1.50, 2.00 mtr

  • Height: 1.00, 1.20, 1.40, 1.60, 1.80, 2.00, 2.40 mtr

  • Lock: Locinox LAKQ2

  • Hinges: Locinox 180° GBMU4D

  • Lockkeeper: Locinox SAKLQF

Other dimensions are available on request

COLORS:

Green fence gate

Moss Green RAL 6005

Grey fence gate

Anthracite Grey RAL 7016

Black RAL 9005

Galvanised Hot-dip

SURFACE TREATMENTS

  • Pre-galvanised + powder coating, according to RAL colour pallet

  • Hot-dip galvanisation, according EN ISO 1461

  • Hot-dip galvanisation + owder coating, according to RAL colour pallet

  • Standard colours: RAL 6005, RAL 7016, RAL 9005

  • Other colours available on request

DOWNLOADS:

LEAFLET

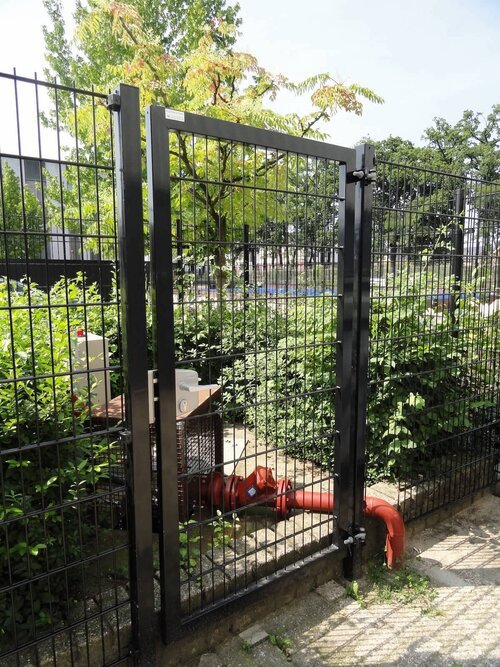

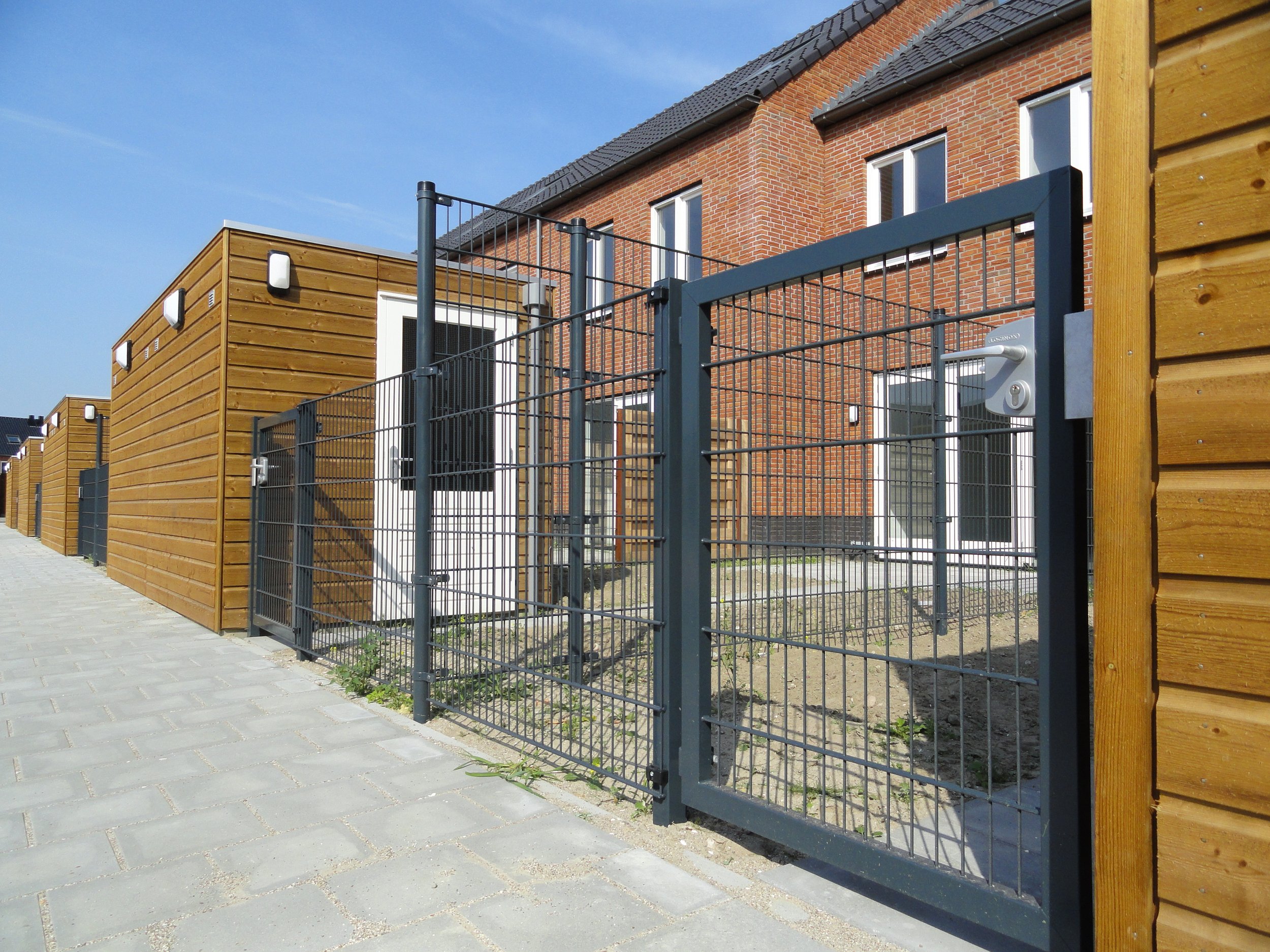

PROJECT PHOTOS:

The Single Leaf Swing Gates meet all essential customer needs, and thanks to the extensive extra equipment and accessories, it has even more to offer.
Modern series production using the latest laser technology makes this gate also cost-effective.
It is the right choice to secure most access areas. The solid steel construction with our possible surface treatments ensures a long-term outdoor operation.
